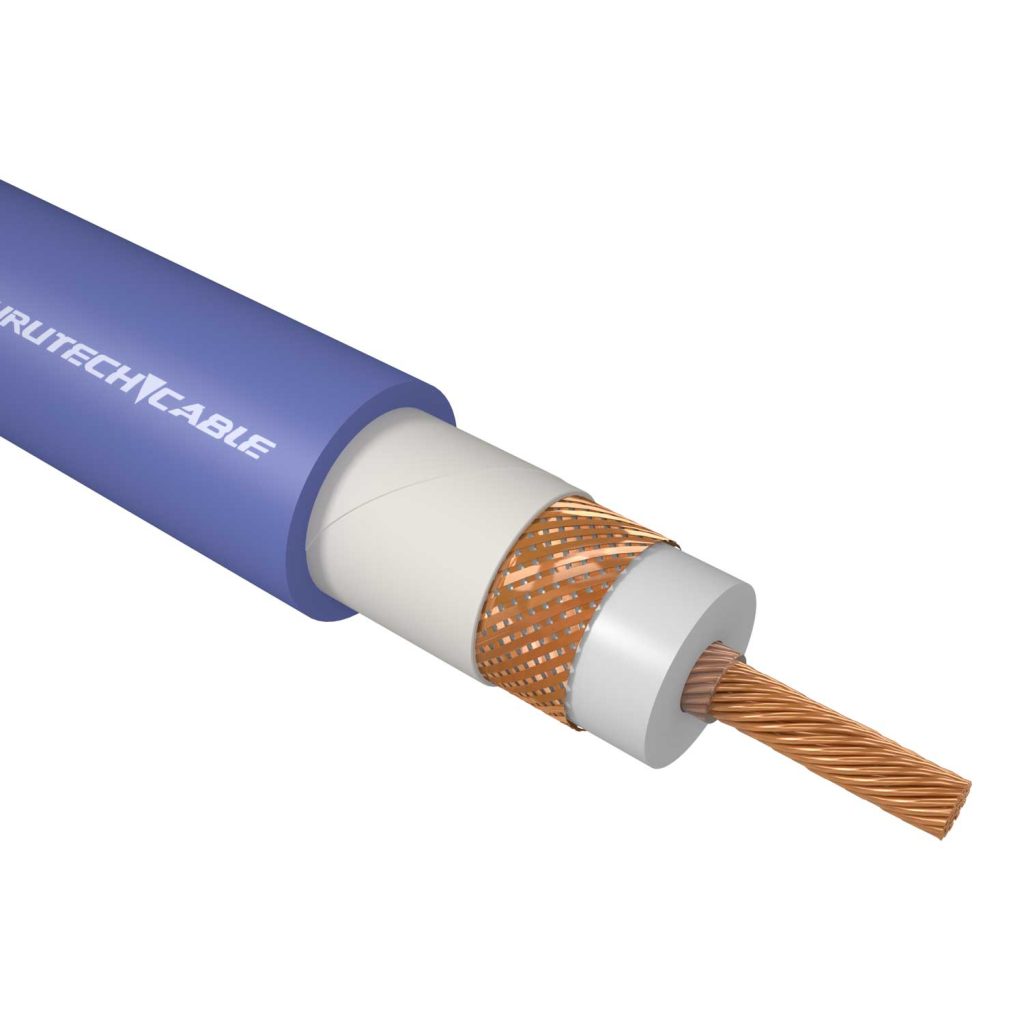

FC-α(Alpha)12
Interconnect Coaxial Bulk Cable
| Item | FC-α(Alpha)12 | |
Conductor | Material | α(Alpha) OCC |
Construction（pcs／mm） | 29/0.18mm | |
Sectional Area / AWG | 0.74 SQ mm / 19AWG | |
Insulation-1 | Material | Audio grade PE (Transparent) |
Insulation-2 | Material | Audio grade High Density Polyethylene Foam |
Shield | Material | 0.12mm braidedα(Alpha) OCC conductor |
Barrier lay | Material | Cotton paper tape wrap |
Sheath | Material | Flexible PVC(Dark Purple Blue) |
Cable type | 75Ω Coaxial type | |
Overall Diameter Approx. （mm） | 8.0 | |
Item | Specification | Test Method |
Max. Conductor Resistance Ω／m | 0.149 | JISC3005 6 20℃ |
Min. Insulation Resistance MΩ‧km | >1000 | JISC3005 9.1 20℃ |
Characteristic Impedance Ω | 75±3 | at 10MHz |
Capacitance PF/m | 83.5 | at 1KHz |
Dielectric Strength V／1 min. | AC 1000 | JISC3005 8 |
Awards
REVIEW
No related articles found.
Download
RATING
50 Meter Reel
FEATURES
Furutech’s α (Alpha) OCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α(Alpha) OCC is made with high-purity oxygen-free mono-crystal copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process.
SPECIFICATIONS
